Mechanical Clamping Tools

PERMAN SYSTEM®

  • High concentricity and
    repeat accuracies of ≤ 0.005 mm (≤ 0.0002”)
  • Excellent wear resistance
  • High rigidity due to
    plane tightening of the workpiece
  • Large loading and insertion clearance

FUNCTION AND STRUCTURE

Product versions

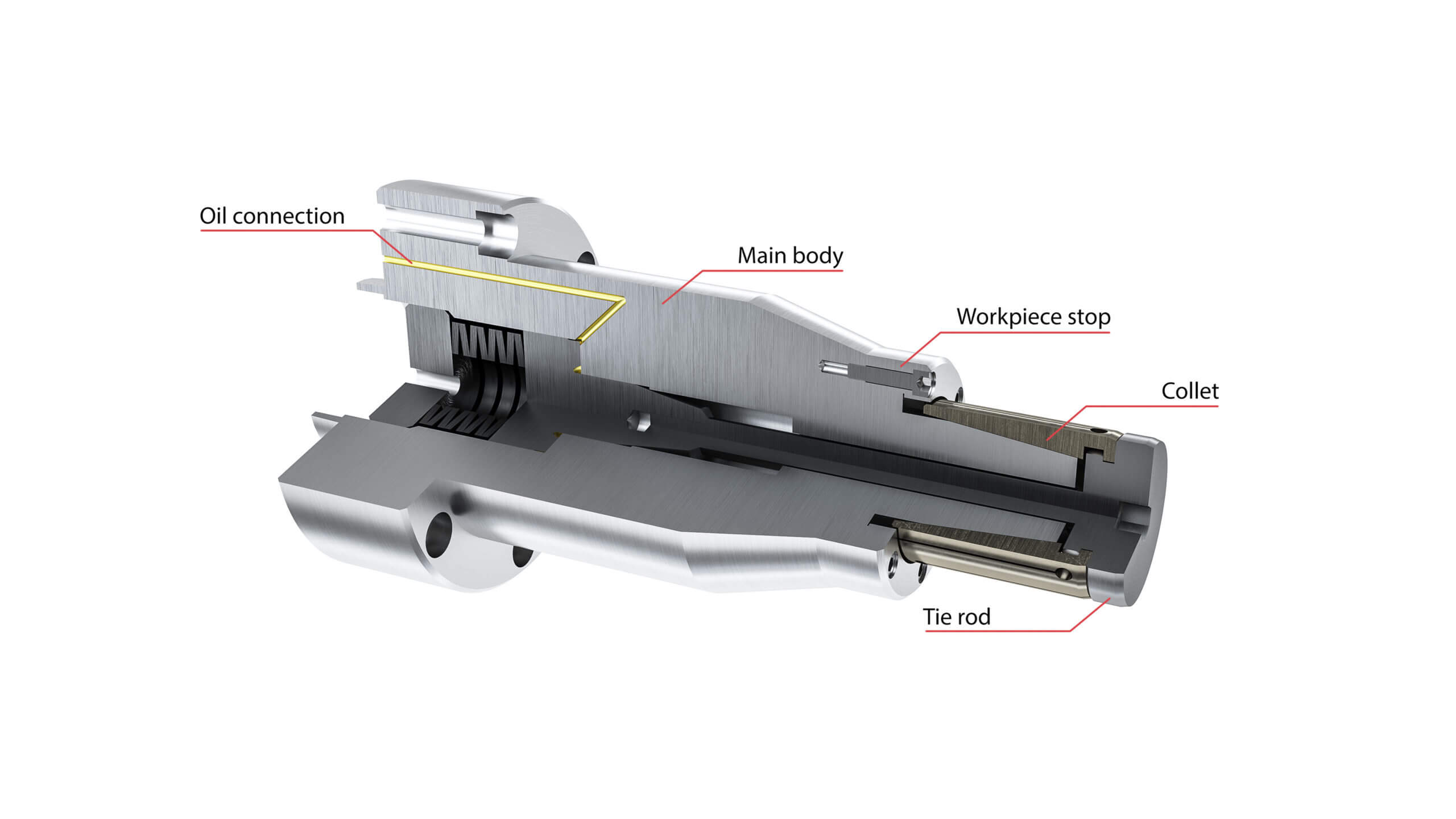

  • HYDRA-Mechanical Clamping Arbor
  • HYDRA-Mechanical Clamping Chuck
Methods of clamping
  • Manually by hand
  • Axially
  • Radially
  • Tangentially
  • Automatically
  • Power-clamping -Push-
  • Power-clamping -Pull-
  • Direct hydraulic injection
  • Permanently via spring package
Machine mounts
  • Between centers
  • Flanged with centering diameter / centering cone
  • ISO mounts such as HSK / SK / MK
  • Special interfaces (customer-specific)
clamping options
  • Exchangeable collets / workpiece stops
  • Clamping of a gearing -> tip circle/base circle/partial circle clamping

Application examples

With the HYDRA Mechanical Clamping Tools

myTEC-verzahnungsschleifen-mechan-kl
Gear
grinding
