Mechanical

Clamping Tools

PERMAN SYSTEM®

  • High concentricity and
    repeat accuracies of ≤ 0.005 mm (≤ 0.0002”)
  • Excellent wear resistance
  • High rigidity due to
    plane tightening of the workpiece
  • Large loading and insertion clearance

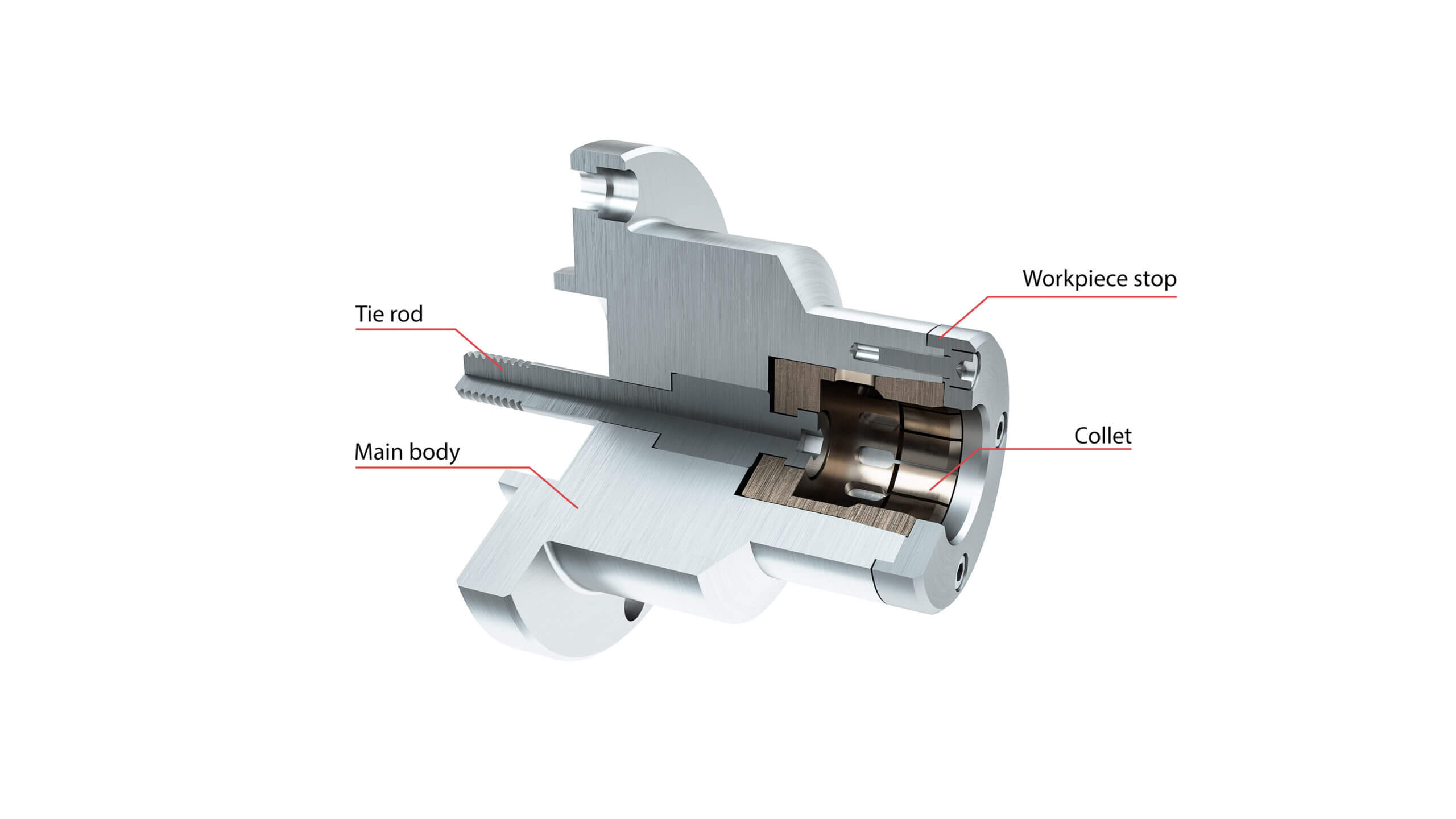

FUNC­TION AND STRUC­TURE

Product versions
  • mechanical clamping arbor
  • mechanical clamping chuck
  • friction cone
Methods of clamping
  • Manually by hand
  • Axially
  • Automatically
  • Power-clamping -Push-
  • Power-clamping -Pull-
  • Permanently via spring package
Machine mounts
  • Between centers
  • Flanged with centering diameter / centering cone
  • ISO mounts such as HSK / SK / MK
  • Special interfaces (customer-specific)
clamping options
  • Exchangeable collets / workpiece stops
  • Clamping of a gearing -> tip circle / base circle / partial circle clamping

Appli­ca­tion exam­ples

With the Mecha­nical Clam­ping Tools

myTEC-messen-kl
Testing, measuring
